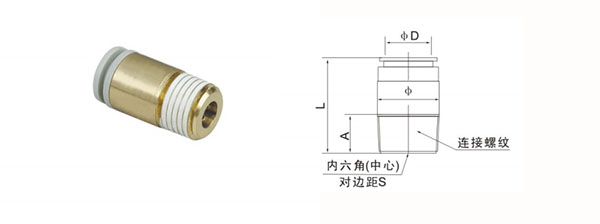

Шестиугольный разъём: KQ2S
| Лампа ΦD | Модель | Резьба для соединения | Внешняя форма соединения | |||
| Размерность | A | L | H | Φ | ||
| φ4 | KQ2S04-M5 | M5×0.8 | 4 | 2.5 | 18.7 | 8 |
| KQ2S04-M6 | M6×1.0 | 4.8 | 3 | 18.2 | ||
| KQ2S04-01S | 1/8″ | 7.5 | 23 | 9.9 | ||
| KQ2S04-02S | 1/4″ | 10.5 | 21 | 11.9 | ||
| φ6 | KQ2S06-M5 | M5×0.8 | 4 | 2.5 | 19.5 | 10 |
| KQ2S06-M6 | M6×1.0 | 4.8 | 3 | 19.1 | 10 | |
| KQ2S06-01S | 1/8″ | 7.5 | 4 | 24 | 11.9 | |
| KQ2S06-02S | 1/4″ | 10.5 | 24 | 13.8 | ||
| φ8 | KQ2S08-01S | 1/8″ | 7.5 | 5 | 28 | 13.8 |
| KQ2S08-02S | 1/4″ | 10.5 | 6 | 25.5 | ||
| KQ2S08-03S | 3/8″ | 11 | 27.5 | 16.9 | ||
| φ10 | KQ2S10-01S | 1/8″ | 7.5 | 5 | 30 | |
| KQ2S10-02S | 1/4″ | 10.5 | 8 | 27.5 | ||
| KQ2S10-03S | 3/8″ | 11 | 27.5 | |||
| KQ2S10-04S | 1/2″ | 14.2 | 28 | 22 | ||
| φ12 | KQ2S12-02S | 1/4″ | 10.5 | 33.5 | 18.9 | |
| KQ2S12-03S | 3/8″ | 11 | 10 | 29 | ||
