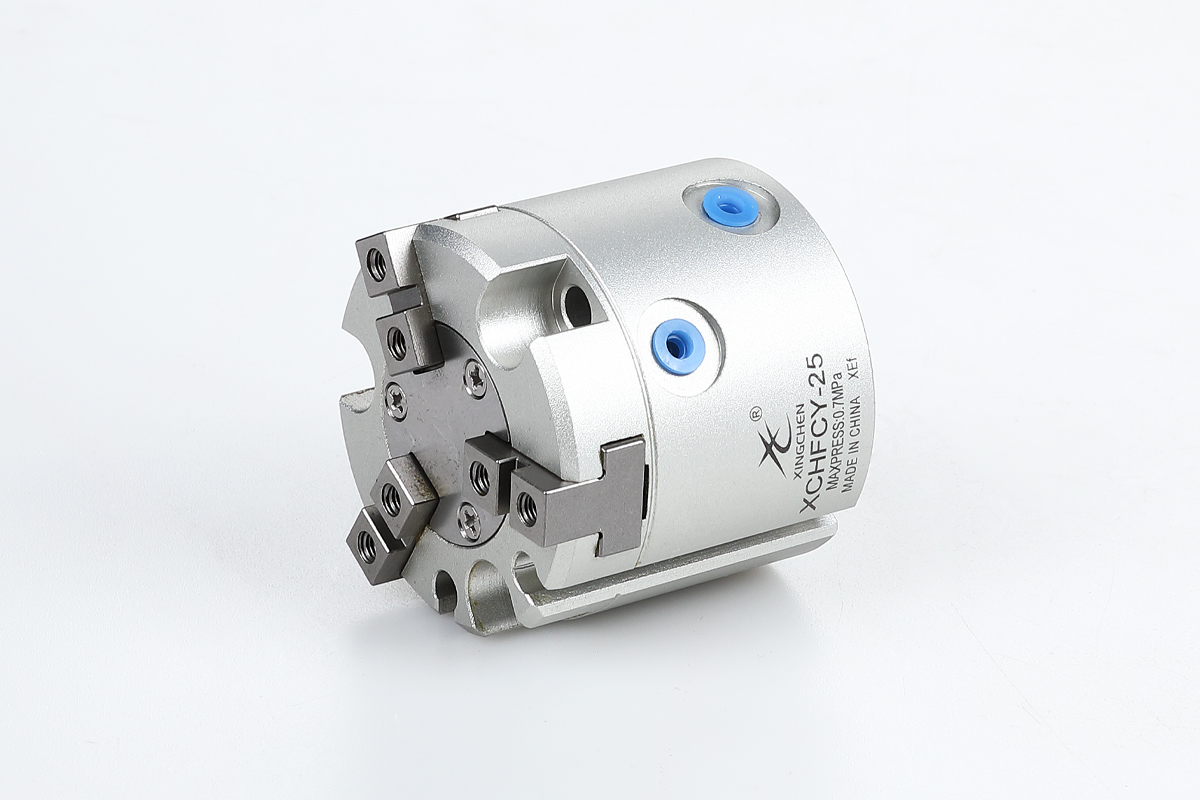

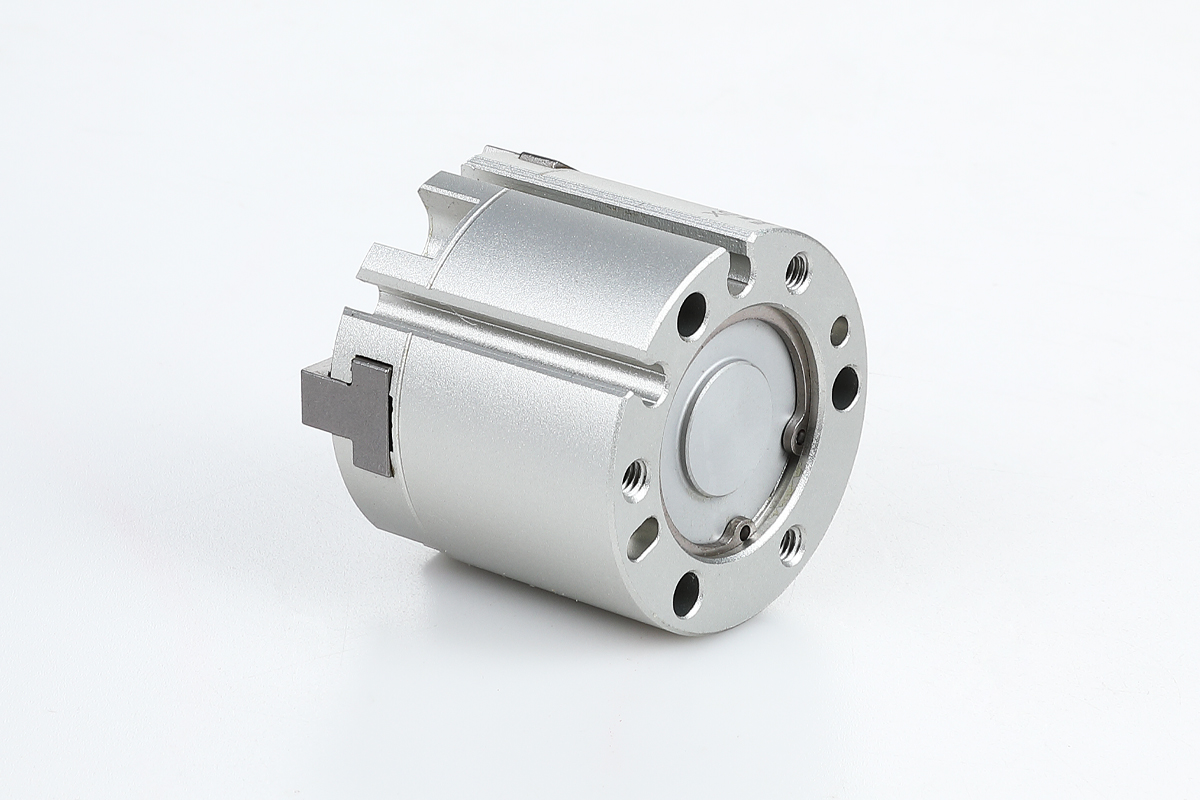

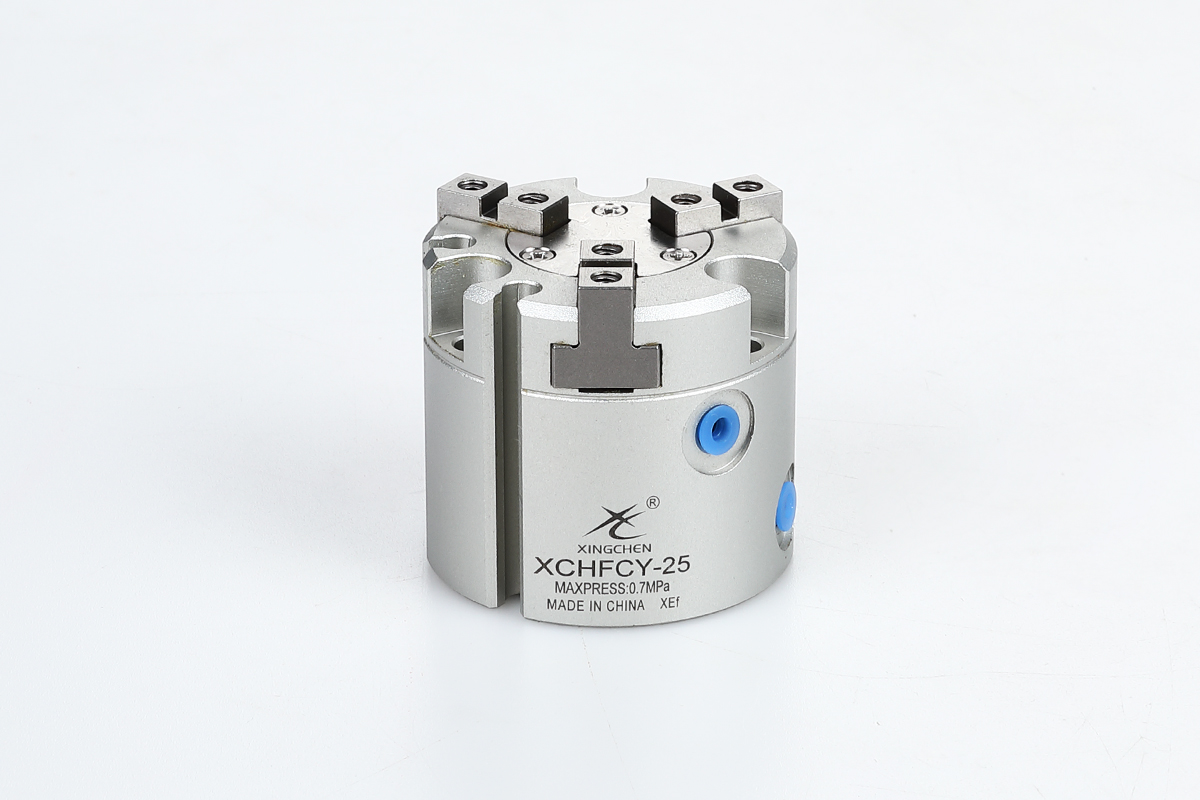

Product Code
| MHS3 | 40 | D |
| Series Code 3:three grippers | Bore(mm) 16,20,25,32,40,50,63,80,100,125 | Acting Pattern D:double-acting |
Standard Specification
| Model | MHSO3-16 | MHSO3-20 | MHS□3-25 | MHS口3-32 | MHS口3-40 | MHS□3-50 | MHS口3-63 | MHSO3-80 | MHSO3-100 | MHSO3-125 | |||
| Bore mm | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |||
| Fluid to be used | Air | ||||||||||||
| Pressure range | 0.2~0.6MPa | 0.1~0.6MPa | |||||||||||
| Ambient and Fluid Temperature | -10~60℃ | ||||||||||||
| Repeatability | ±0.01 | ||||||||||||
| Maximum operating frequency | 120c.p.m | 60c.p.m | |||||||||||
| Oil supply | Not required | ||||||||||||
| Operation method | Double acting | ||||||||||||
| Note) Clamping force N Stresses 0.3MPa | Outside diameter clamping | 14 | 14 | 42 | 74 | 118 | 187 | 335 | 500 | 750 | 1270 | ||
| I.D. Clamping | 16 | 28 | 47 | 82 | 130 | 204 | 359 | 525 | 780 | 1320 | |||
| OD clamping with dust cover | 9 | 21 | 36 | 62 | 97 | 155 | 280 | 400 | – | 一 | |||
| With cover: standard type finger stroke mm | 4 | 4 | 6 | 8 | 8 | 12 | 16 | 20 | 24 | 32 | |||
| Long stroke finger stroke mm | 10 | 10 | 12 | 16 | 20 | 28 | 32 | 40 | 48 | 64 | |||
| Tube caliber Rc | M3×0.5 | M5×0.8 | 1/8 | 1/4 | 3/8 | ||||||||
| Magnetic Switch | Built-in magnetic ring type | ||||||||||||

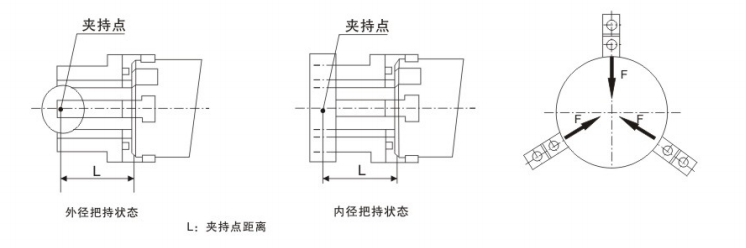

Clamping point
The power of the statute of limitations
External Dimension Drawing (mm)
